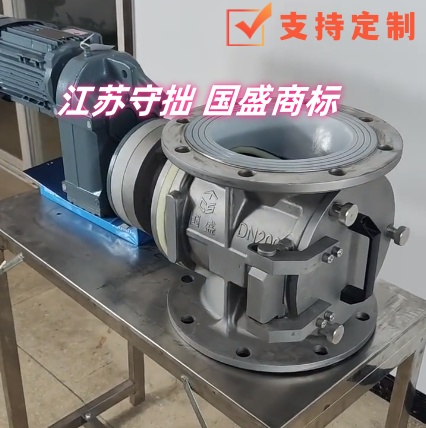

Spray-coated Teflon rotary valve, DN200. material bulk density 0.5~0.7. filling rate 0.6. rotor volume 8L, gas seal, front and rear packing + labyrinth seal ring, design temperature ≤200℃, SS304. power 1.1KW, dust explosion-proof.

　　內襯特氟龍是一種將特氟龍(PTFE)或聚四氟乙烯(F4)等特殊材料涂覆在設備內部的一種技術。這種技術可以將設備的內部表面涂覆上一層特殊材料，從而提高設備的耐腐蝕性、耐高溫性、防粘性、耐磨損性和耐化學性等方面的性能。

　　內襯特氟龍的特點有：

　　1. 耐腐蝕性好：特氟龍材料是化學惰性的，能夠在高濃度酸堿和其他有機物中具有高度的化學穩定性。

　　2. 耐高溫性好：特氟龍材料能承受高達+260℃的高溫工況。

　　3. 防粘附性能好：特氟龍對粘附物質具有特殊的抗粘性能，可以避免流體因黏附而產生的結垢和堆積。

　　4. 耐磨損性能好：特氟龍表面硬度高、耐磨損，能夠有效地抵御設備內部因物料磨損而導致的損壞。

　　江蘇守拙主要定制高端旋轉閥：超級工程/重大項目/科研項目定制旋轉閥。【電話/微信咨詢：陳經理18068546632】

　　部分材質選用內襯噴涂特氟龍旋轉閥的案例：

　　腐蝕性顆粒接近粉體，往常壓反應釜投料，常溫最高30~40度，葉輪也要防腐，間隙要小，需要能耐有機溶劑，和物料接觸部分全部按特氟龍，QJW、BZ投料星型卸料閥 600-700Kg/批/h，材質S31603.DN250.

　　物料為小鹽粒和部分石膏糊糊混雜，粘度很小不太粘壁，帶有一定水分，較容易結塊，顆粒度直徑不超2厘米。倉和物料溫度70℃左右。間歇變頻運行，每小時0.3至1.5立方。因為有腐蝕和輕微粘度，需要不銹鋼加噴涂特氟龍。

　　內襯特氟龍卸灰閥，尺寸400x400.設專用檢修孔，星型卸灰閥葉片需要做特氟龍處理，冶金行業，鋼廠用。

         《掃二維碼-添加 陳經理 微信-咨詢內襯特氟龍旋轉閥》

　　Case studies on the selection of materials for rotary valves with Teflon-coated inner linings:

　　The corrosive particles are close to powder form. They are usually fed into the reactor at atmospheric pressure, with a maximum temperature of 30~40 degrees Celsius. The impeller also needs to be corrosion-resistant, with small clearances. It must be able to withstand organic solvents. All parts that come into contact with the material are coated with Teflon. The QJW and BZ feeding star-shaped discharge valves have a capacity of 600-700Kg/batch/h and are made of S31603 material with a DN250 size.

　　The material consists of a mixture of small salt grains and some gypsum paste, with low viscosity that doesn't adhere to the wall much. It contains a certain amount of moisture and tends to clump easily, with particle sizes not exceeding 2 centimeters in diameter. The temperature of the silo and the material is around 70℃. It operates intermittently with variable frequency, delivering 0.3 to 1.5 cubic meters per hour. Due to corrosion and slight viscosity, stainless steel with Teflon coating is required.

　　The ash discharge valve is lined with Teflon, with dimensions of 400x400. A dedicated maintenance hole is provided. The blades of the star-shaped ash discharge valve need to be treated with Teflon. It is used in the metallurgical industry, specifically in steel plants.
